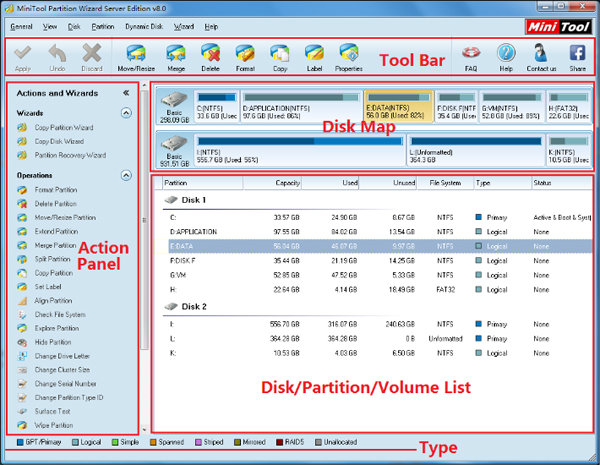

The Main interface of MiniTool Partition Wizard is comprised of five parts: 1. Tool Bar, 2. Action panel, 3. Legend bar, 4. Disk map, 5. Disk / Partition List.
1. In the Tool Bar, some of the common functions of managing partitions are listed.
2. The Action Panel divides the functions into two sections: Partition Operations and Disk Operations. It also shows the partitioning operation commands not yet carried out by user.
3. The Legend bar at the bottom of the screen displays the different kinds of legends with various colors used in MiniTool Partition Wizard.
4. The Disk Map gives an intuitive preview of the partitions or the free spaces.
5. The Disk / Partition List shows all the disks and partitions in the system as well as detailed information about them. All the following data are displayed on the Disk/Partition List.
1. Drive letter, label. If there is no drive letter in a partition, * will be showed.
2. Type of file system.
3. Total capacity of partition.
4. Used space in the partition.
5. Free space in the partition.
6. State of the partitions: Active means the partition is an active main partition, Boot means the system boots from this partition, System means that this partition is where Windows is located, and Hidden means the partition is a hidden partition.
