Magic partition software for Windows Server 2000, 2003, 2008 and 2008 R2.

MiniTool Partition Wizard Server 10

  • Magic Server Partition Manager for Window Server Administrator
  • Maximize Disk Usage Space of Windows Server OS
  • Minimizing Downtime while Solving Low Disk Space Problem on System Partition
Support OS: Windows Server 2003/2008/2012/2016 and Windows PC OS 32 bit and 64 bit

Move/Resize Volume

  • Resize volume
    Resize Volume refers to performing extend/shrink/move operations. Under Windows, Disk Management can help you extend non-system partition simple volume and spanned volume but fails to expand or shrink Striped Volume, Mirrored Volume and Raid-5. Disk Management under Windows 7/2008/Vista offers Shrink Volume function which is not included on other operating systems. Hence, Resize Volume function provided by operating system can never meet needs of different users. It is noteworthy that MiniTool Partition Wizard smashed this limitation. By using MiniTool Partition Wizard, you can resize simple volume, resize spanned volume, expand dynamic volume, shrink dynamic volume and move dynamic volume easily no matter it is system volume or non-system volume.


    Procedures of Move/Resize volume

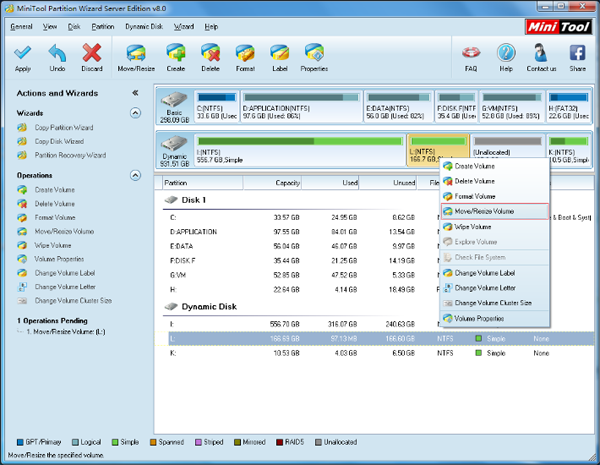

    Step 1: select and right click the target volume, then click “Move/Resize Volume” from the popup menu:

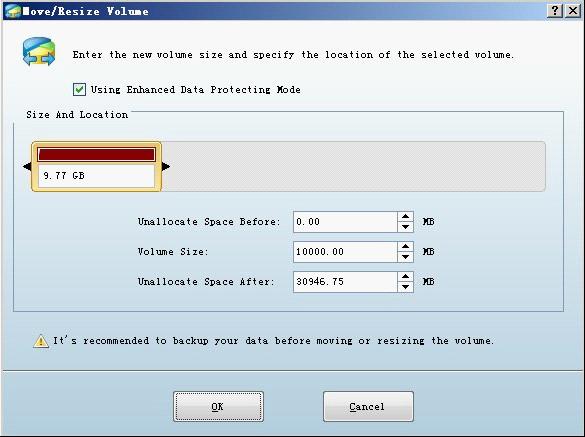

    Step 2: Resize and move volume in the popup window by directly dragging arrows with red circles leftwards or rightwards to expand volume or dragging the volume handle leftwards or rightwards to move volume. Of course, MiniTool Partition Wizard still allows you to enter accurate value in the textboxes below to resize volume and move volume:



    Step 3: Click “OK” to finish Move/Resize Volume operation.


    Note:
    If the space of the volume is not enough, you can shrink the free space in other volumes to enlarge the capacity of this volume. In this case, the security of data is ensured. Your data would not be destroyed or missing when extending, shrinking or moving volume. Even more, you can do the Move/Resize Volume operation to system volumes or boot volume especially when the system volume is not enough.
