Magic partition software for Windows Server 2000, 2003, 2008 and 2008 R2.

MiniTool Partition Wizard Server 10

  • Magic Server Partition Manager for Window Server Administrator
  • Maximize Disk Usage Space of Windows Server OS
  • Minimizing Downtime while Solving Low Disk Space Problem on System Partition
Support OS: Windows Server 2003/2008/2012/2016 and Windows PC OS 32 bit and 64 bit

Align All Partitions

  • It is important and necessary to realign disk drive using MiniTool Partition Wizard to avoid performance degradation scenario (Cluster straddling: clusters span partial physical disk sectors because of shifted partitions. We can Align All Partitions after partitioning hard drive. Aligning All Partitions can help reduce the number of unaligned writes and optimize hard drive performance.


    Align all partitions with MiniTool Partition Wizard:
    Three ways to start “Align All Partitions” operation:

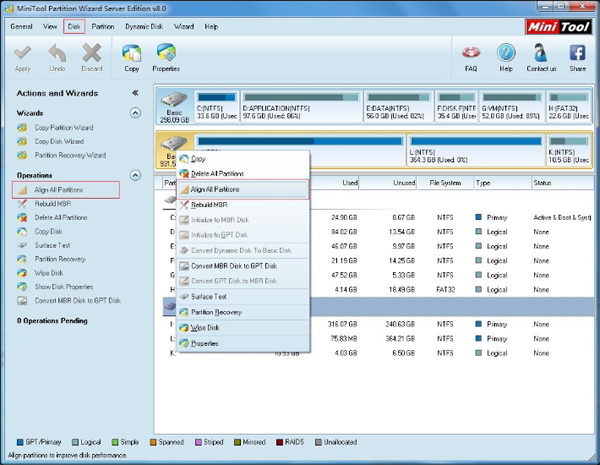

    1. Right click the disk where alignment is to be performed and click “Align All Partitions” from the drop-down menu;
    2. Select the disk where alignment is to be performed and click “Align All Partitions” from Action Panel in the left;
    3. Select the disk where alignment is to be performed, click “Disk” on the top toolbar and click “Align All Partitions” from the drop-down menu.

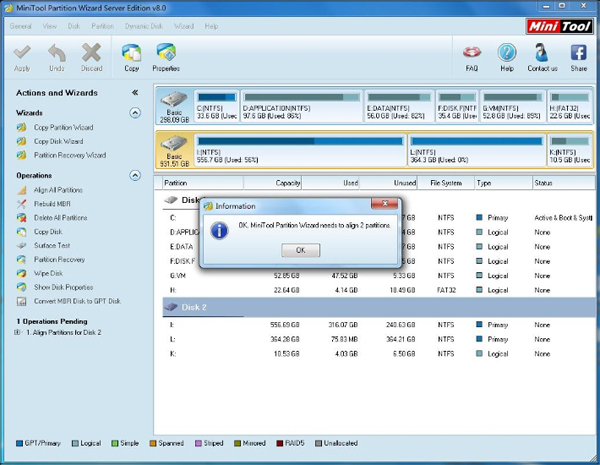

    Then you will be informed of how many partitions are to be aligned. Click “OK” to start alignment.

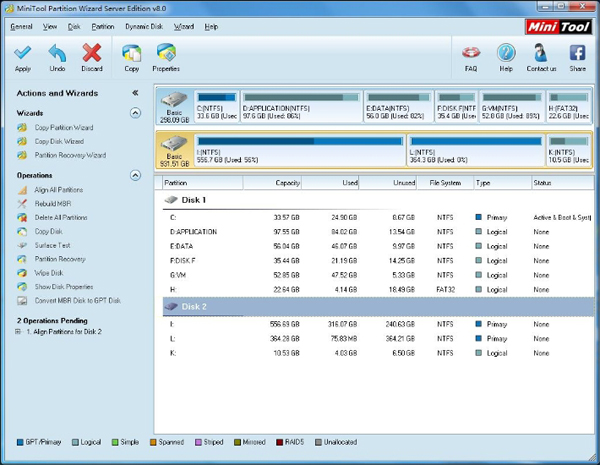

    Last, click “Apply” from the top left corner to execute pending operation and finish Disk Alignment.
